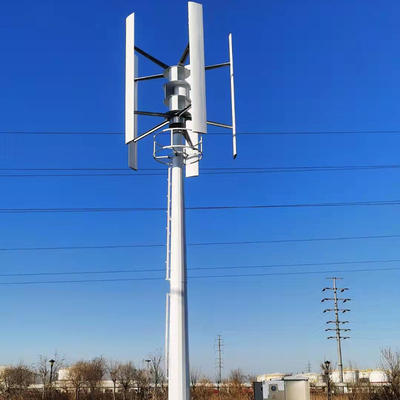

Vertical Small Shaft Wind Power Generator 5KW 120V/220V Wind Turbine Alternative Energy System XTL-HQ2-5KW

1 Piece
MOQ
$4,000.00(1 - 20 Pieces) $3,838.00(21 - 50 Pieces) $3,675.00(51 - 100 Pieces) $3,513.00(>=101 Pieces)
Price
Vertical Small Shaft Wind Power Generator 5KW 120V/220V Wind Turbine Alternative Energy System XTL-HQ2-5KW
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: XTL-HQ2-5KW
Warranty: 1-2 Years
Certification: CE/ISO9001/ISO14001
Customized: Yes
Output Voltage: 120V/220V
Rated Power: 5KW
Rotor Diameter: 2.3m
Start-up Wind Speed: 2.5m/s
Rated Wind Speed: 12m/s
Survival Wind Speed: 45m/s
Basic Infomation
Certification: CE/ISO9001/ISO14001
Model Number: XTL-HQ2-5KW
Payment & Shipping Terms
Product Description
◎ Safety The vertical blade is adopted, and the main stress point is concentrated on the hub, so the problems of blade falling off, fracture and blade flying out have been better solved. ◎ Noise Horizontal plane rotation and blade design based on the principle of aircraft wing are adopted to reduce the noise to a level that can not be measured in the natural environment. ◎ Wind resistance The principle of horizontal rotation and vertical flat blade makes it less subject to wind pressure and can resist super typhoon. ◎ Turning radius Because of its different design structure and operation principle, it has smaller turning radius than other forms of wind power generation, saves space and improves efficiency. ◎ Generation curve characteristics The start-up wind speed is lower than that of other types of wind turbines, and the rising range of power generation is relatively gentle. Therefore, within the wind speed range of 5 ~ 8m, its power generation is 10% ~ 30% higher than that of other types of wind turbines. ◎ Utilization wind speed range The special control principle is adopted to expand its suitable operating wind speed range to 2.5 ~ 25m / s, maximize the use of wind resources, obtain greater total power generation, and improve the economy of wind power equipment. ◎ Braking device The blade itself has speed protection and is also equipped with electromagnetic brake.
Model
XTL-HQ2-5KW
Number of blades
3 pieces/5 pieces
Rated power
5KW
Blades material
aluminum alloy
Max power
6KW
Body material
8A3 carbon steel
Rated voltage
120V/220V
Generator
three phase AC permanent magnet generator/maglev generator
Start-up wind speed
2.5m/s
Control System
electromagnetic brake
Rated wind speed
12m/s
Yaw Mode
automatic windward angle
Survival wind speed
45m/s
Lubrication mode
self lubrication
Net weight of main engine
280KG
Tower form
guyed tower/independent tower
Wind wheel diameter
2.3 m
Working temperature
-40℃-80℃
Blade Height
3.8 m
1、Q：Which model is suitable for me? A：Please contact our sales and tell us the following information, including but not limited to: 1：Your use environment? What equipment do you need to run? The power of the equipment? 2：How many kilowatts of electricity do you need a day? 3：Do you want wind solar complementary system or just wind turbine? Do you want vertical or horizontal axis? 4：What kinds of system do you want? On-grid or off-grid？ 2、Q：Does our wind is enough for the wind turbine? A：The maximum start-up wind speed of our product is 3 m/s. If the wind speed is greater than this value, you can use our wind turbines. 3、Q：About installation? A：It's easy. We will provide all required parts and detailed installation instructions. 4、Q：What certificates do you have? A：We have CE、ISO9001、ISO14001. 5、Q：Does your company support customization? A：Sure.
