Home /Products/Electric Wind Turbine Generator/Vertical Small Shaft Wind Power Generator 200W 12V/24V Wind Turbine Alternative Energy System XTL-R2-200W

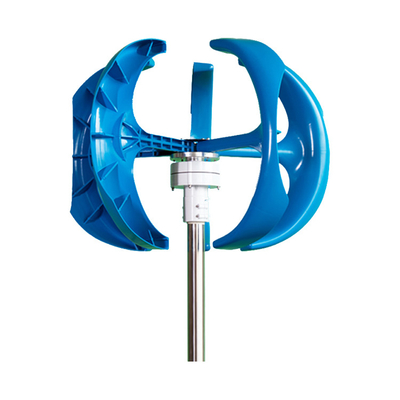

Vertical Small Shaft Wind Power Generator 200W 12V/24V Wind Turbine Alternative Energy System XTL-R2-200W

1 Piece
MOQ
$152.00(1 - 20 Pieces) $146.00(21 - 50 Pieces) $141.00(51 - 100 Pieces) $135.00(>=101 Pieces)
Price
Vertical Small Shaft Wind Power Generator 200W 12V/24V Wind Turbine Alternative Energy System XTL-R2-200W
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: XTL-R2-200W
Warranty: 1-2 Years
Certification: CE/ISO9001/ISO14001
Customized: Yes
Output Voltage: 12V/24V
Rated Power: 200W
Rotor Diameter: 0.9m
Start-up Wind Speed: 2m/s
Rated Wind Speed: 11m/s
Survival Wind Speed: 45m/s
Basic Infomation
Certification: CE/ISO9001/ISO14001
Model Number: XTL-R2-200W
Payment & Shipping Terms
Product Description
◎ Safety The use of nylon glass fiber has better flexibility, so the problems of blade falling off, fracture and blade flying out have been better solved. ◎ Noise Horizontal plane rotation and blade design based on the principle of aircraft wing are adopted to reduce the noise to a level that can not be measured in the natural environment. ◎ Wind resistance The horizontal rotation design principle makes it less subject to wind pressure and can resist super typhoon. ◎ Turning radius Because of its different design structure and operation principle, it has smaller turning radius than other forms of wind power generation, saves space and improves efficiency. ◎ Generation curve characteristics The starting wind speed is lower than that of other forms of wind turbines, the rising range of power generation is gentle and the stability is better. ◎ Utilization wind speed range The special control principle is adopted to expand its suitable operating wind speed range to 2.5 ~ 25m / s, obtain greater total power generation while making maximum use of wind resources, and improve the economy of wind power equipment. ◎ Braking device The blade itself has speed protection, and can be equipped with mechanical manual and electronic automatic braking. It is more suitable for use in areas without typhoon and super gust.
Model
XTL-R2-200W
Number of blades
5 pieces
Rated power
200W
Blades material
nylon fiber
Max power
250W
Body material
nylon fiber
Rated voltage
12V/24V
Generator
three phase AC permanent magnet generator/maglev generator
Start-up wind speed
2m/s
Control System
electromagnetic brake
Rated wind speed
11m/s
Yaw Mode
automatic windward angle
Survival wind speed
45m/s
Lubrication mode
self lubrication
Net weight of main engine
11.5kg
Tower form
guyed tower/independent tower
Wind wheel diameter
0.9m
Working temperature
-40℃-80℃
Blade Height
0.6m
1、Q：Which model is suitable for me? A：Please contact our sales and tell us the following information, including but not limited to: 1：Your use environment? What equipment do you need to run? The power of the equipment? 2：How many kilowatts of electricity do you need a day? 3：Do you want wind solar complementary system or just wind turbine? Do you want vertical or horizontal axis? 4：What kinds of system do you want? On-grid or off-grid？ 2、Q：Does our wind is enough for the wind turbine? A：The maximum start-up wind speed of our product is 3 m/s. If the wind speed is greater than this value, you can use our wind turbines. 3、Q：About installation? A：It's easy. We will provide all required parts and detailed installation instructions. 4、Q：What certificates do you have? A：We have CE、ISO9001、ISO14001. 5、Q：Does your company support customization? A：Sure.
