Home /Products/Off Grid Inverter/Hibrido Solar Powered Hybrid Inverter 3 Phase 380V Hibrid 5 Kw On Grid Off Link Conjunto Pwm 5Kw Quality Inverters 480*420*190mm

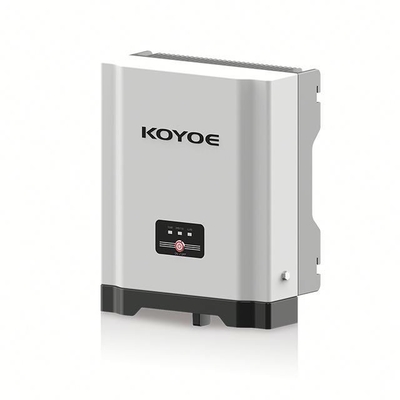

Hibrido Solar Powered Hybrid Inverter 3 Phase 380V Hibrid 5 Kw On Grid Off Link Conjunto Pwm 5Kw Quality Inverters 480*420*190mm

1 Piece
MOQ
$1,410.00(1 - 9 Pieces) $1,400.00(10 - 99 Pieces) $1,380.00(>=100 Pieces)
Price
Hibrido Solar Powered Hybrid Inverter 3 Phase 380V Hibrid 5 Kw On Grid Off Link Conjunto Pwm 5Kw Quality Inverters 480*420*190mm
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: KY-1HYBrid-5k-H, KY-1Hybird-5KWH
Input Voltage: DC600V
Output Voltage: 120 / 240 Vac Split Phase
Output Current: 120-550, 35-41A
Output Frequency: 50/60HZ, 50/60HZ
Output Type: Single
Size: 480*420*190mm, 480*420*190mm
Type: DC/AC Inverters, DC/AC Inverters
Inverter Efficiency: 97.8
Certificate: VDE4105 / G98 / G99 / AS4777 / EN50549 / CEl0-21
Warranty: 5-10, 5 Years Or 10years Option
Weight: 27kg, 27kg
Product Name: Solar Inverter
Cooling Concept: Natural
MPPT Efficiency: 96.7%
Basic Infomation
Certification: VDE4105 / G98 / G99 / AS4777 / EN50549 / CEl0-21
Model Number: KY-1HYBrid-5k-H, KY-1Hybird-5KWH
Payment & Shipping Terms
Packaging Details: Standard export packing for 250 w solar panel
Supply Ability: 30000000 Piece/Pieces per Month
Product Description
Product Description
Efficiency
MPPT efficiency
99.90%
Max efficienncy
97.60%
Battery efficiency
98.50%
Battery port
Operating DC voltage range
85V-450V
Recommend battery voltage
200V
Max charge/discharge power
5000W/5500w
Max charge/diascharge current
23A/27A
Communication interfaces
RS485/CAN
Reverse connect protection
Y
PV port
Absolute maximum PV input voltage
600V
Operating MPPT voltage range
120V-550V
Absolute maximum PV input power
6000W
Rated PV input voltage
380V
Number of independent MPPT
2
MaxPV input power for each MPPT
3300W
MaxPV input current for each MPPT
10A/10A
Max input short circuit current for each MPPT
15A/15A
DC connection type
Quick fit connector
Input/Output AC
Grid connection type
Single phase
Absoulte maximum AC power
5000VA
Nominal AC power
5000W
Rated grid voltage/grid connected voltage range
230V/180V-280V
Rated grid frequency
50Hz/60Hz
Nominal grid current
21.7A
Nominal power factor and adjustable range
1 and 0.8leading -0.8lagging
THD
<3%
AC connection type
Quick fit AC circular
Backup output
Max apparent power
5000VA
Rated AC voltage
230V
Max AC output current
21.7A
Peak power and duration
6500W/10s
Out frequency range
45Hz-55Hz/55Hz-65Hz
Switch times
<10ms
Connection type
Terminal block
General date
Dimensions(W/H/D)mm
525/420/202
Weight
27kg
Environmental protection rating
IP65
Cooling
Nature cooling
Communication
WIFI(optional)/GPRS(optional)/Ethernet/Meter/DRM
Display/Monitoring
LED/APP/Web
Mounting
Wall bracket
Ambient temperature
-25℃-60℃(derating at 45℃)
Relative humidity
4-95% condensing
Altitude without derating
3000m (derating at 2000m)
Acoustic noise emission level
<35dB @ 1m
Over voltage catagory
Ⅲ(AC side) Ⅱ(PV side)
Standby consumption
<10W
Isolation level
Transformerless
Standard warranty
5/10years
Standard
Safety
IEC62190-1/-2,IEC62477-1
EMC
EN61000-6-2/-3,EN61000-3-2/-3
Grid
AS/NZS 4777.2 ,NRS 097-2-1:2017
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Our Factory
Our service
Pre-Sales Service

* Salesmen with 2 months of product training.
*Your questions will be forwarded to the engineer for confirmation.
* Sample testing support and OEM service.
* View our Factory.

After-Sales Service

* Warranty:Two years
* After-sales team keep track of usage and provide timely feedback
* Engineers maintenance on the damaged part for free.
FAQ
Q1.How is your product quality?
A: QC regularly check the quality . We have been working with large solar inverters company. Our products were damaged less than
3% over the past five years. Regarded as a high quality inverter supplier.

Q2.When the product have problem, how to solve it?
A:We have a professional after-sales team, in case of any problems, first contact us to help you solve,
we have a 24 months warranty.We will track product usage until you are satisfied.

Q3.Can you accept OEM, ODM service?
A:Yes, we accept OEM,ODM service.

Q4.What kind of certificate you have ?
A:Our company already achieve ISO, CCC, and for products, we have CE, ETL, Thayer, UL .

Q5. what's the payment term?
A: We accept TT,30% deposit and 70% balance against copy of B/L

Q6. How's the delivery time ?
A: Usually it will take about 5-7 workdays for production

Q7.What kind of material of transformer?
A:we have two types, one 100% copper and the other is copper with aluminum.It depends on your requirement. In fact,those two have
no difference if normal work well. Only except the long life. Copper is better and also higher price.

Q8: What's the different between inverter and solar inverter?
A: Inverter is only accept AC input, but solar inverter not only accept AC input
but also can connect with solar panel to accept PV input, it more save power.

Q9.Do you have unique advantages?
A:Five sales teams are responsible for different markets, with an average staff of 4 and a half years in the company.
R & D team ensure that each year for different markets launch 4 to 7 products listed.
