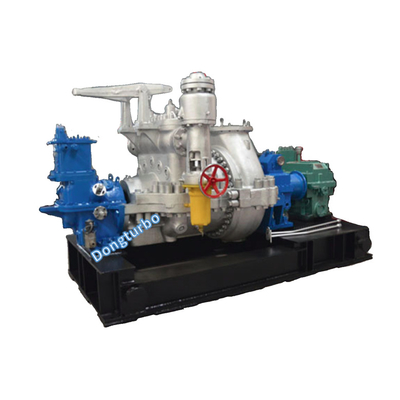

Condensing Steam Turbine 1100KW Model N1.1-1.27 for Biomass Power Plant
The micro steam turbine is very suitable to be the educational equipment/education purpose in the institute of technical education worldwide.
Dongturbo Electric Company Ltd. is a professional manufacturer of small and medium-sized back pressure steam turbines and condensing steam turbines. The industrial steam turbines produced by the company can be classified into two types: industrial-driven steam turbines and industrial power-generating steam turbines. In the petroleum, chemical, electric power, metallurgy, building materials, textile and other industrial sectors and enterprises self-supplied power stations, regional cogeneration, waste heat power generation, garbage power stations, olefin-vapor combined cycle. 5kw, 10kw, 25kw, 30kw, 50kw, 100kw, 150kw, 200kw, 500kw, 1000kw, 1500kw, 2000kw, 3000kw, 4000kw steam turbine. Condensing steam turbine for power generation with CE certificate.
Parameters for 150KW condensing steam turbine with generator
|
No. |
Item |
Data |
Remarks |
|
1 |
Steam Turbine Type |
N1.1-1.27 |
|
|
2 |
Rated Output |
1100 KW |
|
|
3 |
Steam Turbine Rated Speed |
6500r/min |
|
|
4 |
Inlet steam pressure |
1.27MPA |
|
|
5 |
Outlet steam pressure |
0.01MPA |
|
|
6 |
Inlet Steam Temperature |
saturated steam |
|
|
7 |
Direction of rotation |
Counter clock wise from pump side |
|
|
8 |
Rated Flow |
<8.5t/h |
|
|
9 |
Arrangement Model |
Single layer |
|
|
10 |
Steam Turbine Noise |
≤85 bd |
|
Our advantages:
1. With a steam turbine manufacture experience of more than 20 years.
2. We offer turnkey service, including project design, production,construction, installation, and adjustment.
3. Low steam consumption rate, high efficiency to help customer save cost.
4. Strong overload capacity, easy to operate, safety guaranteed
5. We offer customed products.
Application
1) Cogeneration: high thermal efficiency, widely used in brewing, sugar refining, pharmaceutical, textile, printing and dyeing, chemical fertilizer, chemical, regional heating and other industries.
2) Waste heat and energy utilization: steel blast furnace gas, metallurgy sintering waste heat, waste heat at the cement kiln head and inlet, glass kiln waste heat, chemical kiln waste heat, coking waste heat, gas turbine waste heat and other waste heat and waste energy.
3) Biomass power generation: wood chip, straw, leaves, husks, furfural residue, bagasse, palm shell and ordinary trash, etc. can be used for power generation.
4) Other fields: low concentration mine gas, coal slime, saturated steam, etc.
5) Industrial drives: energy-saving substitute for electric motor. Widely applied in the petrochemical industry, directly driven air blowers, compressors, and other highly energy-intensive equipment.
FAQ:
1. Q: Are you trading company or factory
A: We have our own factory with more than 20 years experience.
2. Q: Could you also supply complete set of equipments for biomass power plant?
A: Yes, we can offer compete solution, equipment for the biomass power plant.
3. Q: What will you need to prepare the offer?
A: We will need detail information such as the project background, turbine inlet temperature, inlet pressre, out temperature and outlet pressure.
4. Q: What is your fastest delivery time?
A: For our common model steam turbine, we can dispatch within 60 days after the receipt of the downpayment.
