Industry Power Generation Compact Size Micro Backpressure Steam Turbine For Power

XN-M20 Introduction and detail Description:

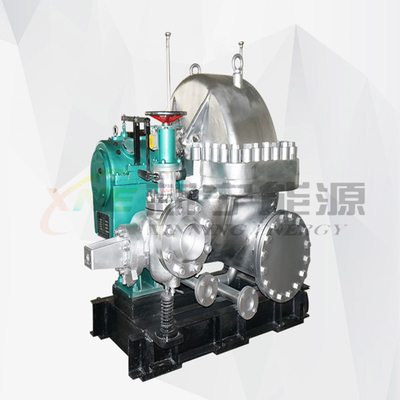

XN-M20 backpressure turbine is a single stage back pressure turbine. The rotor adopts a complex speed stage impeller with a diameter of 624mm nozzle. The speed control system can adopt Japanese Glorious Electronic Speed Regulator or Woodward's TG17 or TG13 Mechanical Speed Regulator with non-forced lubrication. The spindle speed is 1500-4500 revolutions/min. Variable speed can be added according to the user's requirements. The box realizes variable speed. The main feature of this model is to use low temperature and low-pressure steam as the steam source to drive rotating machinery to achieve energy cascade utilization in order to save energy and reduce consumption.

Technical specification of Different XN-M30 Series Models:

XN-M30 Longitudinal profile:

XN-M30 thermodynamic system diagram:

About the Company:

Anhui Xinning Energy Technology Co., Ltd. located in Ningguo National Economic and Technological Development Zone. It is an "equipment supplier and power operator" that provides the overall solution of industrial waste heat and residual pressure power generation and new energy power generation. The company's main products are special turbines for energy recovery and new energy thermal power generation, with strong R&D strength. At present, the company has independent intellectual property rights such as "radial steam turbine series", "special working medium steam turbine", “Organic Rankine Cycle (ORC) Low-Temperature Power Plant". Among them, "Radial Steam Turbine Series" technology fills the domestic blank and reaches the international advanced level. Radial steam turbine working fluids include steam, Freon, carbon dioxide, compressed air, nitrogen, methane, and pentane, and so on. They are mainly used in iron and steel, metallurgy, petrochemical, chemical industry (coking, coal chemical, phosphorus chemical, alkali chemical, lithium salt, rubber, calcium carbide, ferroalloy, carbon), thermoelectricity, papermaking, kiln, furnace, etc. Waste heat and residual pressure recovery and high-speed dragging in printing and dyeing, cement, ceramics, coal gangue, oil field waste heat liquid, medicine, tobacco, food, and many other industries can also be applied to distributed energy systems, geothermal, biomass energy, solar thermal power generation. The radial turbine manufactured by our company is a kind of mechanical equipment which uses the temperature and pressure of steam (steam, compressed air, nitrogen, carbon dioxide, Freon and other different gases). In 2018 Anhui Xinning Energy Company won the fourth position in the national entrepreneurship and innovation contest in the Energy sector. The company upholds the "integrity, cooperation and win-win" business philosophy to create maximum customer value for the development of purpose, timely grasp of industrial energy-saving high-end technology fields and the pulse of the industry, to provide users with energy-saving overall solutions. Hardworking and sincere we are willing to go hand in hand with you, create brilliant!

Awards and Certification:

Our Services:

1. All turbines, generators, and control systems like DEH, ETS, TSI, etc. have to pass strict inspection and tested before shipping.
2. After receiving the goods, we accept your feedback the first time.
3. We could provide an installation guide, if you have a need, we could give you a global service
4. provide the customized solution.
5. Our Sales are 24-hours online for our request.
6. Professional sales
7. We value every inquiry sent to us, ensure a quick competitive offer.
8. We cooperate with the customer to bid tenders. Provide necessary documents.
9. We are a sales team, with all technical support from the engineering team.

FAQs:

1. Why Choose us?

We are R&D based manufacturer Compared with the same industry, our products are small size, lightweight, low steam consumption, high thermal efficiency, and simple in operation. (Our company's radial steam turbine won the first prize of scientific and technological innovation in Anhui Province in 2015, the science and technology award of 10 million yuan by Anhui Science and Technology Bureau, and the Fourth Prize in the national entrepreneurship competition in 2018.)

2. How to get the quote?

There are different types of steam turbines and generators set, to choose the appropriate steam turbine and generator according to your requirements please provide us the following parameters

1. steam turbine inlet pressure, flow, and temperature of the steam.

2. Steam turbine Capacity in KW or MW.

3. Generator speed in r/min.

4. Generator terminal voltage and frequency

5. Generator cooling method, ON/OFF grid.

6. Outlet steam pressure of the turbine in case of backpressure steam turbine.

7. Extraction pressure and the flow in case of extraction and condensing steam turbine.

It is very important that buyers provide the information as much as they can to get the best quotation.

3. Are you a manufacturer?

Yes, we are a manufacturer as well as a supplier of various types of steam turbines.

4.What about the product quality?

We have a testing and quality control department to ensure the quality of the products to meet national and international standards in the steam turbine industry.

5.What about the price?

We only offer a reasonable price instead of the high price.

6.How about the shipment?

Shipment by sea and by air is accepted, it depends on the volume of the order.

7. What about after-sales services?

We provide after-sales services based on customer demand. we provide installation and maintenance assistance abroad as we have customers around the globe. for more detail see above "Our Services".

8. What about Custom manufacturing?

Yes, we do custom manufacturing as well based on customer requirements.

9. How about packaging?

Standard export wooden case, iron frame, and another seaworthy packaging.

10. How long is the delivery time?

We ship our goods to China's Seaport. We can't decide the time needed for other transportation, but the manufacturing time can be discussed as per requirements, and it directly depends on the order volume and necessity like urgent or normal.
