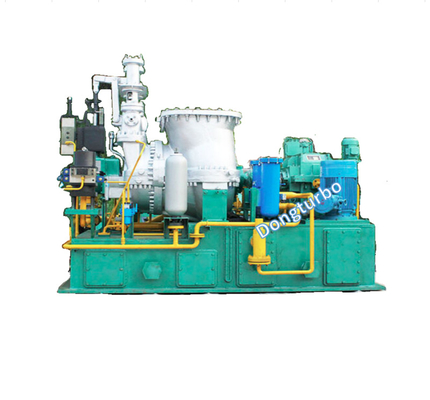

Condensing Steam Turbine 5000KW Model N5.0-1.35 for Power Generation
Parameters
|
No. |
Item |
Parameters |
|
|
1 |
Model |
N5.0-1.35 |
|
|
2 |
Power |
5000KW |
|
|
3 |
Inlet pressure |
1.35Mpa(A) |
|
|
4 |
Inlert flow |
26t/h |
|
|
5 |
Inlet temperature |
360 ℃ |
|
|
6 |
Exhaust pressure |
0.01Mpa(ABSOLUTE) |
|
|
7 |
Speed |
5600rpm |
|
|
8 |
Turbine direction |
According to the direction of generator |
|
|
9 |
Main material |
Front casing |
ZG230-450 |
|
Rear casing |
HT250 |
||
|
Blade |
1cr13 |
||
|
Impeller |
35crMoA |
||
|
Main shaft |
35crMoA |
||
|
Front/rear bearing seat |
HT250 |
||
|
Main valve housing |
ZG230-450 |
||
|
10 |
Diameter (inner diameter) of inlet/exhaust pipe |
DN150/ DN850 |
|
|
11 |
Inlet & exhaust direction |
Side inlet/upper exhaust |
|
|
12 |
Overspeed protection mode |
Two out of three automatic overspeed protection+mechanical flying hammer emergency breaking protection device |
|
|
13 |
Operation speed of overspeed protection |
6160-6272r/min |
|
|
14 |
Overspeed protection response time |
<1s |
|
Our advantages:
1. With a steam turbine manufacture experience of more than 20 years.
2. We offer turnkey service, including project design, production,construction, installation, and adjustment.
3. Low steam consumption rate, high efficiency to help customer save cost.
4. Strong overload capacity, easy to operate, safety guaranteed
5. We offer customed products.
Application
1) Cogeneration: high thermal efficiency, widely used in brewing, sugar refining, pharmaceutical, textile, printing and dyeing, chemical fertilizer, chemical, regional heating and other industries.
2) Waste heat and energy utilization: steel blast furnace gas, metallurgy sintering waste heat, waste heat at the cement kiln head and inlet, glass kiln waste heat, chemical kiln waste heat, coking waste heat, gas turbine waste heat and other waste heat and waste energy.
3) Biomass power generation: wood chip, straw, leaves, husks, furfural residue, bagasse, palm shell and ordinary trash, etc. can be used for power generation.
4) Other fields: low concentration mine gas, coal slime, saturated steam, etc.
5) Industrial drives: energy-saving substitute for electric motor. Widely applied in the petrochemical industry, directly driven air blowers, compressors, and other highly energy-intensive equipment.
