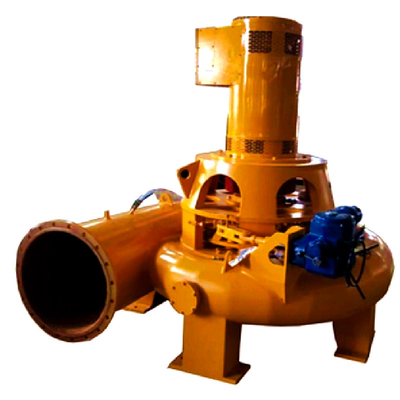

energy & DTEC Hydro Generator Mining Hydro Turbine For Small Hydro Power Plant

1.0 Units
MOQ
energy & DTEC Hydro Generator Mining Hydro Turbine For Small Hydro Power Plant
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Warranty: 3 Years
Applicable Industries: Energy & Mining
Showroom Location: Russia, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 3 Years
Core Components: Pressure Vessel, Pump, Gear, Bearing, Gearbox, Engine, PLC, Motor
Model Number: HL110-WJ-42
Type: Plant, Francis
Electricity Generator Type: Hydro Power
Output Voltage (V): 400
Key Selling Points: Energy Saving
Certificate: ISO9001
EPC: Avialible
Water Head(m): 36
Power Range: 100kw
Frequency: 50Hz
Generator Voltage: 400V
Layout Pattern: Horizontal Or Vertical
After-sales Service Provided: Free Spare Parts, Video Technical Support, Online Support
Local Service Location: Russia, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan
Basic Infomation
Certification: ISO9001
Model Number: HL110-WJ-42
Payment & Shipping Terms
Packaging Details: Wooden/steel packages are suitable for International Mulit-transportation
Supply Ability: 10 Unit/Units per Year
Product Description
Product Description
Francis Turbine Generator Unit

Product Introduction

Francis turbine is also called Francis turbine，is a kind of counter turbine ,by the American engineer Francis invented in 1849, also known as Francis turbine ,or radial axial flow turbine The structure of the Francis turbine is simple ,the main components include volute ,seat ring , water guide mechanism .cover ,runner ,spindle .guide bearing ,bottom ring ,tail pipe ,etc .Volute is a water diversion parts ,shaped like a snail shell ,generally made of metal materials .circular section .The seat ring is arranged between the volute and the guide vane .which is composed of the upper ring ,the lower ring and a number of columns and is directly connected with the volute .The column is a wing shaped ,non rotating . aiso known as guide vane The water guide mechanism is movable quide vane ,speed reguiating ring ..connecting rod and other parts The directly connected with the spindle ,Francis turbine is also called Francis turbine ,is a kind which is the o this type of .The runner is composed of the upper crown .lower ring .drain cone and a number of fixed blades .The shape and matching size of each component are different according to the water head used .The tail pipe is the water flow from the runner to the downstream of the turbine discharge parts ,generally elbow shape, small turbine straight conical tail pipe ,water flow from the surrounding radial flow into the runner ,and then approximate axial flow out of the runner .The development trend in recent years is high head ,large capacity .high specific speed and high efficiency .The mingda factory produces Francis turbine generator sets which is the rotating part of this type of turbine .The are mainly with horizontal shaft and vertical shaft .
The features of rare earth permanent magnet motor
1.The features of Francis turbine is simple structure and reliable operation :high efficiency ,suitable for water head of 10m-70m ,which is currently one of the mostly widely used :
2. When the water flows through this kind of turbine working wheel ,it enters and leaves in the radial direction ,so it is also called the radial axial flow turbine :
3. Mixed hydro turbine ,also known as Francis turbine . water flow from the surrounding radial flow into the runner ,and then approximately axial flow out of the runner ,the runner is composed of the upper crown . lower ring and blade :
4. Itis suitable for the water head from 20 meters to 700 meters ,simple mechanism ,stable operation ,and-high efficiency ,but it is generally used in the range of water head (50 m to 400 m ) .output from kilowatts to hundreds of thousands of kilowatts .At present ,the maximum output of this of turbine has exceeded 700.000 kilowatts .It is one of the most widely used water turbine
.
Range of Application
The main components of the inclined-jet turbine are similar to the pelton turbine, the two kinds water turbine also have nozzle and working wheel. The difference are as follows:
1. The placement position of the nozzle is not in the same plane with the working wheel, but in an angle with the plane, which is called oblique angle.
2. The wheel of pelton turbine is spoon-shaped, with axial force, the jet inters from one side of the wheel and flows out from the other side.
3. The outer circle of the pelton wheel has an outer wheel ring, which increases the blade strength and reduces part of the wind resistance loss. The inclined-jet turbine occupies a unique application range(in the specific speed of n-30-70 range ). and the francis turbine is
not applicable, a single nozzle pelton turbine can not reach this specific speed. And the efficiency of cross flow turbine is too low.
Model
Power
(KW)
Water head
(m)
Flow Rate
(m3/s)
Speed
(r/min)
Wheel diameter
(mm)
Pipe diameter
(mm)
HL110-LJ-20
5
15
0.05
1500
21
200
HL110-LJ-25
10
18
0.09
1000
25
250
HL110-LJ-30
10
15
0.12
750
30
300-350
HL110-LJ-25
15
22
0.1
1000
25
200-300
HL110-LJ-30
15
18
0.13
750
30
300-350
HL110-W-30
20
23
0.15
1000
30
300-350
HL110-WJ-35
20
18
0.18
750
35
350-400
HL110-WJ-30
30
30
0.18
1000
30
300-350
HL110-WJ-30
30
23
0.21
750
35
400-450
HL110-WJ-30
40
32
0.18
1000
30
350-400
HL110-WJ-35
40
26
0.22
1000
30
400-450
HL110-WJ-35
50
31
0.24
1000
35
400-450
HL110-WJ-42
50
26
0.31
750
42
500
HL110-WJ-35
75
40
0.27
1000
42
500-600
HL110-WJ-42
100
36
0.396
750
42
600
HL110-WJ-42
125
42
0.4
750
42
600
HL110-WJ-50
160
38.8
0.561
750
50
600-700
HL110-WJ-50
200
45.5
0.61
750
50
600-700
Specification

Hydro Turbine Generator Unit

1. Francis Turbine


Francis turbine is a kind of turbine suit to water head 20-300meters and with certain suitable flow.
It could be divided into vertical and horizontal arrangement. Francis turbine have the advantage of high efficiency, small size and reliable structure.
Horizontal Francis turbine unit, with horizontal shaft, could be 2 or three supports. Which is normally one stair arrangement.
Simple structure, easier operation and maintenance.
Vertical Francis turbine unit, with vertical shaft, metal spiral case or concrete spiral case. With adjustable guide vane, and
stay ring etc parts, are suit to runner diameter bigger than 1000mm. Our engineer will select the most suitable Francis turbine
for your hydro power project.
Ø Suitable water head: 20-300m;
Ø Output scope: 50Kw -50Mw;
Ø Runner diameter: 35cm -250cm;
Ø Runner material: stainless steel;
Ø Arrangement type: Vertical and Horizontal;

2. Pelton Turbine
Pelton turbine suit to water head 100 to 1000 meters and with certain small flow. It could vertical and horizontal arrangement, nozzle numbers from one to six. Pelton turbine with feature of wide flow high efficiency region. It could start turbine with 10% of rated flow. Pelton turbine with one or two nozzles usually adopt horizontal arrangement, but multiple nozzle Pelton turbine adopts vertical arrangement. Pelton turbine units are wildly used in mountain area all over the world, and well known by its simple structure, less investment, high efficiency, and reliable long service life.
Ø Suitable water head: 80-1000m;
Ø Output scope: 50Kw -20Mw;
Ø Runner diameter: 55cm -230cm;
Ø Runner material: cast or forged stainless steel;
Ø Arrangement type: Vertical and Horizontal;
Ø Nozzle numbers: 1-6;
3. Kaplan Turbine
Kaplan turbine is a kind of turbine suit to low water head 3-45 meters, and with certain big flow, normally divided into fixed
blades and adjustable blades turbine. Main components including: runner, draft cone, water chamber, guide vane, bearing, and main shaft. The spiral case could be steel or concrete. The runner diameter we can manufacture is from 80cm to 4meters, with rated output 50Kw to 20Mw.
Turbine units normally be vertical shaft arrangement. Generator equipped with same or different shaft, with Anyway, they will share the same rotating speed. If specially required, a speed increase gear could be equipped between turbine and generator in order to smaller the generator size.
Ø Suitable water head: 3-45m;
Ø Output scope: 100Kw -30Mw;
Ø Runner diameter: 80cm -400cm;
Ø Runner material: stainless steel;
Ø Arrangement type: Vertical;
Generator
Hydro turbine generator is driven directly or indirectly by hydro turbine. The rotating speed is less than 1500r/min, with
horizontal and vertical arrangement. Excitation mode with brushless and static silicon type. Components including stator, rotor, base frame, bearing, excitation motor or collecting ring. The outlet voltage from 400V to 13.8KV, and frequency could be 50Hz or 60Hz, output from 50Kw to 50Mw. Our generator is high efficiency, reliable, manufacture and tests all follow related IEC standards.
Ø Frequency: 50 or 60Hz;
Ø Voltage scope: 0.38-13.8KV;
Ø Arrangement: vertical and horizontal;
Ø Speed scope: 93.75-1500r/m;
Ø Power factor: 0.8 – 1;
Ø Insulation Level: F/F;
Ø Output scope: 50Kw- 50Mw
Manufacturing Technique
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
We, Dongturbo Electric Company Ltd.(DTEC). DTEC is an international corporation, with its headquarter in Chengdu, China, and manufacturing bases in Deyang and Kunming, China, mainly engaged in the manufacturing of power & electric equipments, EPCC (engineering, procurement, construction, commissioning), and export and import business. DTEC also has branches and joint venture in Malaysia, Thailand, and Philippine. Our business scope covers EPC, supply equipment and materials for thermal power including boiler, turbine, generator and their auxiliaries, BOP, electric and C& I etc.; EPC and equipment supply for PV, thermal solar power, Wind & PV hybrid and energy storage system.; spare parts supply and power plant overhaul and maintenance;
We have established close partner relationship with design institute, manufacturers, erection company, traders and end customers both in China and all over the world.
We actively and continuously engaged in the domestic and global electrical markets. Our professional Engineering, Project
Management etc. contributed to the success of the contracted projects, meanwhile, we also shared a lot from those success, we became one of the technical expertise for systematic solution for power industry.

We are willing to grow with our customers, and we always believe our success can only rely on the success of our customer. We are always prepared to provide the best solution to our customer, provide the best service to our customer, and make the most gain to our customer.
FAQ
Hydro turbine is a customized product, please provide the following parameters
Pls can you let me know the below parameters so we can offer you the best suggestions.
1.Water head:___m
2.Water flow:____m³/s
3.Frequency: 50Hz/60Hz?
4.Generator outgoing line voltage:__Kv
5.On-grid or Off-grid type? (On-grid type voltage:____Kv)
6. Unit Capacity: ___KW
So I can choose the model for you and send you pictures.
