1kw wind turbine are a type of wind generator where the main rotor shaft is set vertically and the main components are located at the base of the turbine. VAWTs offer a number of advantages over traditional horizontal-axis wind turbines (HAWTs). They can be packed closer together in wind farms, allowing more in a given space. they are smaller, but rather due to the slowing effect on the air that HAWTs have, forcing designers to separate them by ten times their width.
GreeF1 kw wind turbine residential are rugged, quiet, light, Omni-directional, and they do not create as much stress on the support structure. They do not require as much wind to generate power, thus allowing them to be closer to the ground. By being closer to the ground they are easily maintained and can be installed on rooftop and similar tall structures.
Recommend for
• Household, Garden, farm
• Telecom sites.• Rural electrification programs. Island , sentry, island, sight lighting.
The off grid 1kw wind turbine residential is often used in conjunction with solar panels to provide more reliable year-round energy supply.
| Model | GV-1KW |
| Rated Power | 1000W |
| Max Power | 1500W |
| Rated Rotor Speed | 120rpm |
| Start Torque | <0.3N.M |
| Blades Height | 2.6( 8.528 ft.) |
| Blades Rotor Diameter | 1.8(5.904 ft.) |
| Blades Material&Quantitiy | FRP /3PCS |
| Start Wind Speed | 1m/s (2.24mph) |
| Rated Wind Speed | 10m/s(22.4mph) |
| Working Wind Speed | 1-25m/s (2.24-56 mph) |
| Safety Wind Speed | 50m/s(112mph) |
| Option Voltage | 24-220V |
| Generator Type | Three-phase AC out rotor disc permanent magnet direct drive generator |
| Protection Method | Electromagnetic brake+PWM |
| Generator Weight /Top Weight | 32kg/111kg |
| Swept Area | 4.68m2 |
| System type | Off/On Grid |
| Controller | Off/on-Grid solar wind hybrid controller |
| Invertor | off/on- Grid invertor |
| Tower Type | Free folding tower |
| Tower Height | 6m(19.68ft.) |
| Insulation Grade | B |
| Protection Grade | IP54 |
| Working Termperature | -40℃ - 50℃ |
| Life time | 20 Years |
Dimension

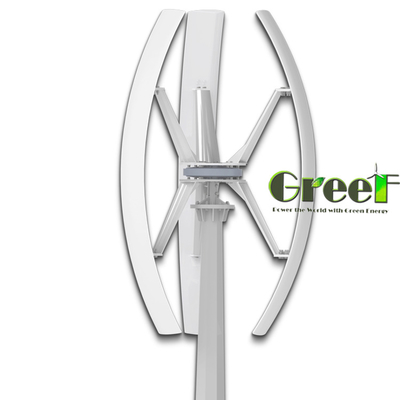

Additinal Function GV-1KW Vertical wind generator
Packaging & Shipping
1.1kw wind turbine residential use inner foam protection outer Plywooden case .
2. Tower with Foam package only .
3. Controller invertor with inner carton box outer plywooden case.
4. Pakage size and weight please refer to our sales.
5. Shipping by sea with FCL LCL or by air .
If you have any request in package and shipping please tell our sales we will do according to your request.
Our Services
System Design Service
We can design different system for customers according their request For example, off-grid system Grid-tie system , solar wind hybrid system or solar wind diesel generator system
After Sale Service
Our main 1kw wind turbine residential and battery are free 3 years warranty, controller and invertor are 1 years warranty.
All lifelong technical support and part cost supply.
(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
(3) The warranty period, company's quality problems caused by the maintenance of the freight borne by the company, if not under warranty or man-made damage, the freight charges by the customer.
Certifications
1. Q: Why buy a small wind turbine ?
A: A GREEFwind turbine is a smart investment that will lower your monthly expenses, increase your net worth. At the same time, it will help clean the air, slow climate change, and move us towards the energy independence. You will also enjoy watching your utility meter turn backwards and the lively interaction between the wind and your GREEF turbine. Finally, it will totally change your view of wind – you will start appreciating windy days. For those fortunate enough to have a windy site of at least one acre, a GREEF wind system will be substantially less expensive than a comparable solar system, it will take up less space, and its performance won’t degrade over time.
It's like buying vs. renting a home
Over the next 10 years a typical homeowner or small bussiness will pay $18000 to over $5000 in electric bills , at rates that often increse faster than inflation. When you choose a GREEF wind system you take the same monthly expense and invest it in a tangible asset. Once your bergey turbine is paid off, you will enkoy more money in your pocket every month for the next 20years.
2. Q: Does 1kw wind turbine residential installation Easy ?
A: Very easy, every customer can doin by themselves, we will supply all the components for installation and very details installation manual.
3. Q: Does our wind is enough for 1kw wind turbine residential?
A: As our 1kw wind turbine residential can start running at low wind speed 1m/s. so your average annal wind speed is 4- 5m/s then you can use it .
4.Q:Which model is suitable for me?
A: Please contact our sales with following points :
1. What appliance do you want to running by the system? How many watts are they and their working time .
2. Your annual wind speed .
3. What kinds of system do you want ? On-grid or off-grid
5.Q:Can I only buy parts of the 1kw wind turbine residential not whole system?
A: Yes,for example you can manufacture tower in local , we can supply you tower drawing .
6. Q: What is your power range of VAWT ? Please send your inquiry to get infromation of other models.
Any other questions ,please feel free to contact us .GreeF company sales team will give you our best service !
