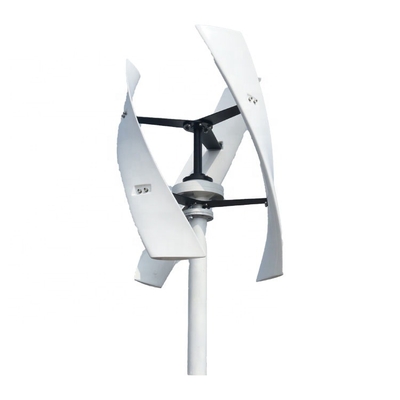

1.Magnet generator Core-less generator, Horizontal rotation with high efficiency.
2.3 blades with curved design,utilizes wind resource effectively and obtains a higher power generation
3. 20 years use life and 1 year for warranty, warmly welcome to be our agent.
4. Small ,light ,stable and safely, special control principle expended the wind speed to 2.5 ~ 25m/s, utilizes wind resource effectively and obtains a higher power generation.
5.Certified with:CE.
6.High efficiency, could be hybrid system with solar panels for home use, LED street light, planting room...
7.Applications: Marine, Boat,Streetlights, Home, Opening Plaza lighting etc.
1.Magnet generator Core-less generator, Horizontal rotation with high efficiency.
2.3 blades with curved design,utilizes wind resource effectively and obtains a higher power generation
3. 20 years use life and 1 year for warranty, warmly welcome to be our agent.
4. Small ,light ,stable and safely, special control principle expended the wind speed to 2.5 ~ 25m/s, utilizes wind resource effectively and obtains a higher power generation.
5.Certified with:CE.
6.High efficiency, could be hybrid system with solar panels for home use, LED street light, planting room...
7.Applications: Marine, Boat,Streetlights, Home, Opening Plaza lighting etc.
|
Item |
SX-300 |
SX-400 |
SX-600 |
SX-800 |
SX-1500 |
SX-5KW |
SX-10KW |
|
Started wind speed (m/s) |
1.3 m/s |
1.3 m/s |
2 m/s |
2 m/s |
2 m/s |
2 m/s |
2 m/s |
|
Cut-in wind speed (m/s) |
2.5 m/s |
2.5 m/s |
3 m/s |
3 m/s |
4 m/s |
4 m/s |
4 m/s |
|
Rated Wind speed (m/s) |
10 m/s |
10 m/s |
10 m/s |
10 m/s |
12 m/s |
12 m/s |
12 m/s |
|
Rated voltage(AC) |
12V-48V |
12V-48V |
24V/48V |
24V-96V |
48V-220V |
96V-220V |
96V-220V |
|
Rated power(W) |
300W |
400W |
1000W |
1500W |
1500W |
5KW |
10kw |
|
Max power(W) |
350W |
450W |
1050W |
1550W |
1650W |
5150W |
11580w |
|
Rotor Diameter of Blades(m) |
0.6m |
0.6m |
0.9m |
1.1m |
1.6m |
2.4 |
3 |
|
Product assembly weight (Kg) |
<20Kg |
<20Kg |
<45KG |
<70KG |
<180KG |
<380KG |
<680KG |
|
Blades colors |
White/Green/Red |
White |
White |
White |
White |
White |
|
|
Blades height(m) |
1.0m |
1.3m |
1.64m |
1.92m |
2.8m |
3.6 |
|
|
Safe wind speed (m/s) |
≤40m/s |
||||||
|
Blades quantity |
3 |
||||||
|
Blade material |
Glass Fiber |
||||||
|
Generator |
Three phase permanent magnet suspension motor |
||||||
|
Control System |
Electromagnet |
||||||
|
Mount Height(m) |
2~12m |
||||||
|
Generator protection grade |
IP54 |
||||||
|
Work environment temperature |
-25~+45ºC |
||||||
|
Work environment humidity |
≤90% |
||||||
|
Altitude: |
≤4500m |
||||||
|
Overspeed protection |
Electromagnetic brake |
||||||
|
Overload protection |
Electromagnetic brake and the unloading unit |
||||||
