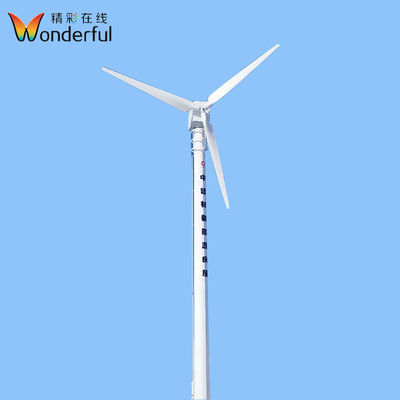

Vertical 50kw 220v wind power system permanent magnet generator horizontal axis AC 380v 100kw 30kw wind turbine
1.360/380V 30KW High power Horizontal axis Electronically Controlled type wind turbine generator from China Manufacture.
2.Low start-up speed, high wind power utilization, light, cute, low vibration.
3.Human-friendly design, easy to install and maintain.
4.Blades using Reinforced glass fiber, helped with optimized structure and aerodynamic shape, it enhanced wind power coefficient and power generating capacity.
5.Using patented permanent magnet rotor AC generator and special stator, it effectively reduces torque resistance, makes wind turbines and generators have more good matching characteristic and guarantees the stability.
Type NO. | WON-WT-HEC30000 | WON-WT-HEC50000 | WON-WT-HEC100000 |
Rated Power | 30kW | 50kW | 100kW |
Max Power | 33kW | 55kW | 110kW |
Start-up Wind Speed | 2.5m/s | 2.5m/s | 2.5m/s |
Rated Wind Speed | 10m/s | 10m/s | 10m/s |
Survival Wind Speed | 45.0m/s | 45.0m/s | 45.0m/s |
Rated Voltage | 360/380V | 360/380V | 360/380V |
Wheel Diameter | 12m | 18m | 22m |
Number of Blades | 3 | ||
Blades Material | Reinforced glass fiber | ||
Generator | Three phase AC permanent magnet synchronous generator | ||
Control System | Electronically controlled yaw protection | ||
Speed Regulation Method | Automatically adjust windward direction | ||
Lubrication | Lubrication grease | ||
Working Temperature | -40℃-80℃ | ||
