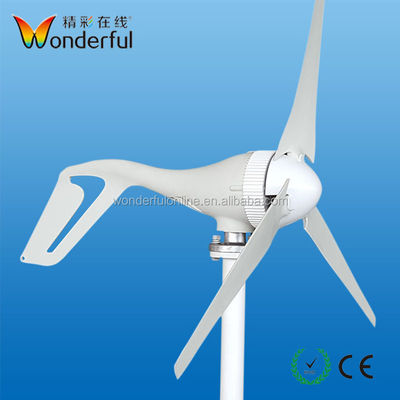

Renewable low rpm 100w 200w wind alternator wind power system small 12v 24v wind turbine generator for sale
2.Low start-up speed, high wind power utilization, light, cute, low vibration.
3.Human-friendly design, easy to install and maintain.
4.Blades using Nylon fiber, helped with optimized structure and aerodynamic shape, it enhanced wind power coefficient and power generating capacity.
5.Using patented permanent magnet rotor AC generator and special stator, it effectively reduces torque resistance, makes wind turbines and generators have more good matching characteristic and guarantees the stability.
|
Type NO. |
WON-WT-H100S3 |
WON-WT-H200S3 |
WON-WT-H300S3 |
|
Rated Power |
100W |
200W |
300W |
|
Max Power |
130W |
220W |
310W |
|
Start-up Wind Speed |
2.0m/s |
2.0m/s |
2.0m/s |
|
Rated Wind Speed |
10.0m/s |
11.5m/s |
13.0m/s |
|
Survival Wind Speed |
55.0m/s |
55.0m/s |
50.0m/s |
|
Rated Voltage |
12/24V |
12/24V |
12/24V |
|
Wheel Diameter |
1.2m |
1.3m |
1.35m |
|
Top N.W |
6.0kg |
6.5kg |
7kg |
|
Number of Blades |
3/5 |
||
|
Blades Material |
Nylon fiber |
||
|
Generator |
Three phase AC permanent magnet synchronous generator |
||
|
Control System |
Electromagnet/Wind wheel partial side |
||
|
Speed Regulation Method |
Automatically adjust windward direction |
||
|
Working Temperature |
-40℃-80℃ |
||
|
Tower Type |
Guyed tower |
||
Off-grid wind & solar power system
