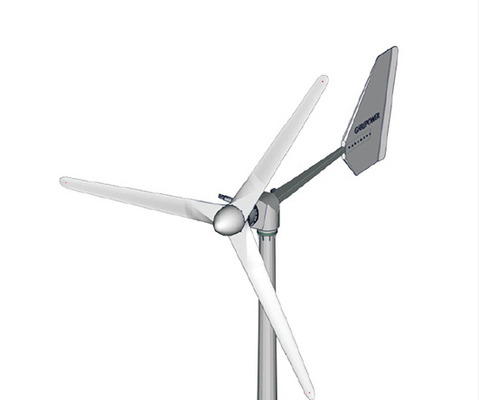

Silent wind power system FD5 5KW 10kw wind turbine windmill generator for sale, aerogenerador éolien de generator generador de energy

1 Set
MOQ
Silent wind power system FD5 5KW 10kw wind turbine windmill generator for sale, aerogenerador éolien de generator generador de energy
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: FD5-5
Warranty: 2 Years
Certification: CE
Customized: Yes
Output Voltage: 230V
Rated Power: 5000W
Rotor Diameter: 5.1m
Type: Permanent Magent Generator
Application: Wind Power System
Rated Power: 5kw
Rated Voltage:: 48v/220v
Product Name: 5KW Wind Turbine Generator
Keyword: 5kw Wind Power System
Generator Type: 3 Phase AC Permanent-magnet
Rated Wind Speed:: 11m/s
Start-up Wind Speed: 3m/s
Work Temperature: -20-50
Basic Infomation
Certification: CE
Model Number: FD5-5
Payment & Shipping Terms
Packaging Details: Standard Export Package
Supply Ability: 2000 Set/Sets per Year
Product Description
Product Description

Hot selling FD5 Series

1.The standardized design is convenient for module expansions
2.RS485 communication interface can be remotely monitored through GPRS
3.Withstand multiple typhoon tests. (maximum wind speed 45m/s)
4.Professional magnetic circuit design, low motor starting torque.
5.Components are light and flexible, convenient for manual installation.
6.Thousands of small WTGs of FD5-5 have been widely used around the world.
7.Widely used in the telecom industry, border islands, troops, households
8.Low noise: use the optimum generator design to reduce noise.
9.Low cost：integrate inverter, controller, and dump-load into the same cabinet that can be independently applied outdoors,effectively eliminating the construction cost of room.

Specification
Model
FD5-5
FD8-9.8
Tower Height(m)
12
 12/20
Design Class
IECIII
IECIII
Weight (kg)
190
670
Rated Power (kW)
5
9.8
Brake Way
Mechanical/ Electromagnetic
Rotor Diameter(m)
5.1
7.8
Speed Regulation
Yawing/Stall speed
Rated Wind Speed (m/s)
11
10
Lightning protection Measure
Surge/Grounding
Rated PRM(rpm)
270
150
Surface Anti-corrosion
C5
Cut-in Wind Speed (m/s)
3
3
Blade Material
FRP
Cut-out Wind Speed (m/s)
25
25
Generator
Direct-Drive PMSG
Extreme Wind Speed (m/s)
52.5
52.5
Protection Class
IP54
Noise Level dB(A)
56
56
Monitoring System
CUBE2.0
Operating Temperature(°C)
-20〜50
-20〜50
Lifespan (year)
20
Annual Energy Production and Noice Level
Wind Speed(m/s)
4.0
4,5
5.0
5.5
6.0
6.5
7.0
7.5
8.0
FD8-9.8(MWH)
10.6
14.8
19.3
23.7
27.8
31.3
34.4
36.8
38.6
FD5-5(MWH)
4.2
6.0
8.1
10.3
12.4
14.4
16.2
17.8
19.0
Details Images
Wind turbines convert wind energy to electrical energy for distribution. Conventional horizontal axis turbines can be divided into
three components:
1.The rotor, includes the blades for converting wind energy to low speed rotational energy;
2.The generator, includes the electrical generator,the control electronics, and a gearbox,adjustable-speed drive, or continuously variable transmission;
3.The surrounding structure,includes the tower and rotor yaw mechanism.
Wind Turbine Rotor & Baldes
Rotor blades are the most important parts of a wind turbine in terms of performance and cost of the wind power system.For the FD21
series, the Rotor diameter is 21 meters.
Wind Generator
Adopt low speed permanent magnetic generator, direct drive gearbox free transmission designing.
Low noise： reduce noise by best
practice designing
High power generation：optimalize parameters setting by analyzing huge amounts of operation data
Lower cost：reduce initial investment by integrating controller and inverter inside the tower and cutting controller room's installation
cost
Wind Turbine Control Panels
•Active variable pitch control
•Variable pitch control technology to ensure stable power output during gust
•Multiple-layer safety protections of intellectual variable pitching, mechanical, braking, electric magnetic braking, and active yawing system
•Independent active variable control technology to ensure stable and reliable operations in working wind range;
Solution

Commercial Grid-Tie Solutions

Highly efficient production,high return on investmentScenario:In wind rich areas with wind power Feed-in Tariff subsidy policies. Features:
• Grid-tied at medium power, lower requirements for grid-tied side.
• Active control to fully ensure the safety and high efficiency, high ratio of utilization.
• Low rated wind speed, higher annual electricity production.
• High reliability, low investment risk.
• Complete SCADA real time data monitoring, full control of operation status. Application:Commercial investment
in distributed power generation.
System Schematic
Related Products
Model
FD16
Weight
4000KG
Design Class
IECII
Rated Power
30/40/50Kw
Speed Regulation
Active stall
Tower Height
32/20m
Model
FD21
Weight
9100KG
Design Class
IECIIA
Rated Power
50/60/100KW
Speed Regulation
Pitch/Active stall
Tower Height
30/36/42m
Model
FD25
Weight
9100KG
Design Class
ECIIIA
Rated Power
60/100/120KW
Speed Regulation
Pitch/Active stall
Tower Height
30/42m
Our Projects

FD16-19.8

Classification:Generate electricity for commercialCapacity:20KW*8
Location: Hokkaido Japan
Performance period:2018

FD21-100

Classification:Micro-gridCapacity:100KW
Location: Jeju Island,Korea
Performance period:2013

F21-60

Classification:Generate electricity for commercialCapacity:60KW*4
Location: Codaglia
Performance period:2013

FD5-5 Wind & Solar

Classification:BTS power supplyCapacity:15KW
Location: Mongolia
Performance period:2010.
