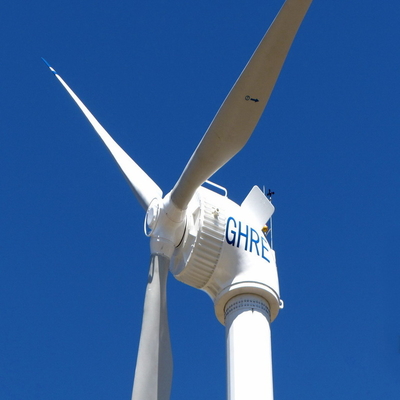

Hot Sale Wind Power System Horizontal Permanent Magnetic Shaft FD25 120KW 150KW 100KW Generator Wind Turbine for Wind Farm

1 Set
MOQ
Hot Sale Wind Power System Horizontal Permanent Magnetic Shaft FD25 120KW 150KW 100KW Generator Wind Turbine for Wind Farm
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: FD25-120
Warranty: 2 Years
Certification: CE
Customized: Yes
Output Voltage: 400V
Rated Power: 120KW
Rotor Diameter: 25m
Type:: Permanent Magent Generator
Application: Wind Power System
Rated Power: 120kw
Rated Voltage:: 400VAC
Product Name: 120 KW Wind Turbine Generator
Keyword: 120kWind Power System
Generator Type: 3 Phase AC Permanent-magnet
Rated Wind Speed:: 13m/s
Start-up Wind Speed: 3m/s
Work Temperature: -20-50
Basic Infomation
Certification: CE
Model Number: FD25-120
Payment & Shipping Terms
Packaging Details: Standard Export Package
Supply Ability: 2000 Set/Sets per Year
Product Description
Product Description

Hot selling FD21 Series

1.Compliant with CEI0-21, UL1741, CSA C22.2 NO.107.1-01, G59/2 grid-tied standards.
2.SWCC, CE, IEC61400 Certificates.
3.Permanent magnet direct-drive for generator with active pitch control technology.
4.Active pitch adjustment in strong wind to ensure stable power output.
5.Multiple safety protection for intelligent pitch control, mechanical brake, electromagnetic brake and active yaw system.
6.Full power inverter isolation technology to ensure safe operation of WTG.
7.Suitable for small wind farm, smart grid, micro-grid systems.
8.Low noise: use the optimum generator design to reduce noise
9.High electricity generation: set control parameters through huge database analysis.
10.Cost reduction: controller and inverter are integrated into the tower, reducing the initial investment cost.
Specification
Model
FD21-50
FD21-60
FD21-100
Tower Height(m)
30/36/42
36/42
Design Class
IECIIA
Weight (kg)
9100
Rated Power (kW)
50
60
100
Brake Way
Pitch / Mechanical / Electromagnetic
Rotor Diameter(m)
21
Speed Regulation
Pitch Control
Rated Wind Speed (m/s)
9
10
13
Lightning protection Measure
Air termination
Rated PRM(rpm)
50
52
60
Surface Anti-corrosion
C5
Cut-in Wind Speed (m/s)
3
Blade Material
FRP
Cut-out Wind Speed (m/s)
25
Generator
Direct-Drive PMSG
Extreme Wind Speed (m/s)
59.5
Protection Class
IP54
Noise Level dB(A)
56
Monitoring System
CUBE2.0
Operating Temperature(℃)
-20~50
Lifespan（year）
20
Power Curve
Note:
The power curve is the actual test value of the unit, only the power curve is provided externally; noise test conditions:
wind speed 8m / s, distance about 25m
Annual Energy Production
Note:
The power generation is calculated according to the power curve theory, and the actual unit power is related to the site
temperature, altitude, wind condition, power grid and other factors.
Wind Speed(m/s)
4.0
4.5
5.0
5.5
6.0
6.5
7.0
7.5
8.0
FD21-100 (MWh)
75
106
141
178
215
252
285
315
340
FD21- 60 (MWh)
69
96
125
153
178
202
222
237
248
FD21- 50 (MWh)
68
94
120
146
169
189
205
218
227
Details Images
Wind turbines convert wind energy to electrical energy for distribution. Conventional horizontal axis turbines can be divided into
three components:
1.The rotor, includes the blades for converting wind energy to low speed rotational energy;
2.The generator, includes the electrical generator,the control electronics, and a gearbox,adjustable-speed drive, or continuously variable transmission;
3.The surrounding structure,includes the tower and rotor yaw mechanism.
Wind Turbine Rotor & Baldes
Rotor blades are the most important parts of a wind turbine in terms of performance and cost of the wind power system.For the FD21
series, the Rotor diameter is 21 meters.
Wind Generator
Adopt low speed permanent magnetic generator, direct drive gearbox free transmission designing.
Low noise： reduce noise by best
practice designing
High power generation：optimalize parameters setting by analyzing huge amounts of operation data
Lower cost：reduce initial investment by integrating controller and inverter inside the tower and cutting controller room's installation
cost
Wind Turbine Control Panels
•Active variable pitch control
•Variable pitch control technology to ensure stable power output during gust
•Multiple-layer safety protections of intellectual variable pitching, mechanical, braking, electric magnetic braking, and active yawing system
•Independent active variable control technology to ensure stable and reliable operations in working wind range;
Solution

Commercial Grid-Tie Solutions

Highly efficient production,high return on investmentScenario:In wind rich areas with wind power Feed-in Tariff subsidy policies. Features:
• Grid-tied at medium power, lower requirements for grid-tied side.
• Active control to fully ensure the safety and high efficiency, high ratio of utilization.
• Low rated wind speed, higher annual electricity production.
• High reliability, low investment risk.
• Complete SCADA real time data monitoring, full control of operation status. Application:Commercial investment
in distributed power generation.
System Schematic
Related Products
Model
FD16
Weight
4000KG
Design Class
IECII
Rated Power
30/40/50Kw
Speed Regulation
Active stall
Tower Height
32/20m
Model
FD21
Weight
9100KG
Design Class
IECIIA
Rated Power
50/60/100KW
Speed Regulation
Pitch/Active stall
Tower Height
30/36/42m
Model
FD25
Weight
9100KG
Design Class
ECIIIA
Rated Power
60/100/120KW
Speed Regulation
Pitch/Active stall
Tower Height
30/42m
Our Projects

FD16-19.8

Classification:Generate electricity for commercialCapacity:20KW*8
Location: Hokkaido Japan
Performance period:2018

FD21-100

Classification:Micro-gridCapacity:100KW
Location: Jeju Island,Korea
Performance period:2013

F21-60

Classification:Generate electricity for commercialCapacity:60KW*4
Location: Codaglia
Performance period:2013

FD5-5 Wind & Solar

Classification:BTS power supplyCapacity:15KW
Location: Mongolia
Performance period:2010.
