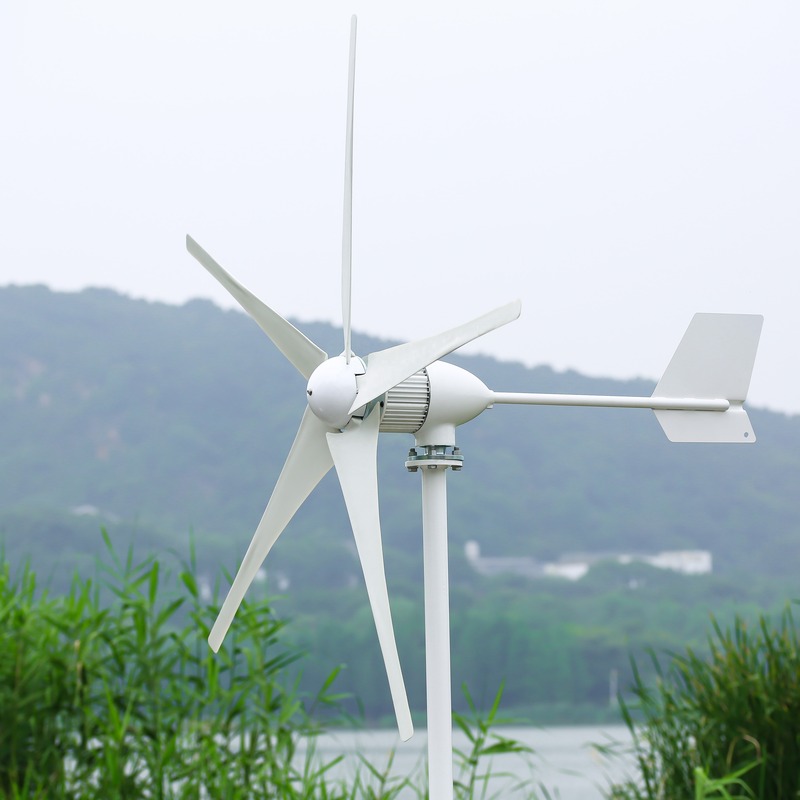

Small home wind turbine generator 1KW with factory price RX-1000H5

2 Pieces
MOQ
$359.00(2 - 9 Pieces) $299.00(10 - 49 Pieces) $259.00(>=50 Pieces)
Price
Small home wind turbine generator 1KW with factory price RX-1000H5
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: RX-1000H5
Warranty: 10YEARS
Certification: CE
Customized: Yes
Output Voltage: 24V/48V
Rated Power: 1KW
Rated Watt: 1000W
Rated Voltage: 24V/48V
Start-up Wind Speed: 2m/s
Rated Wind Speed: 12.5m/s
Survival Wind Speed: 40m/s
Color: White
Basic Infomation
Certification: CE
Model Number: RX-1000H5
Payment & Shipping Terms
Packaging Details: One piece per carton
Product Description
Feature
1. Low start up speed; high wind energy utilization; beautiful appearance; low vibration

2. Human friendly design, easy installation, maintenance and repair.

3. flange or tube connection optional, convenient installation

4. Precise injection molding blades together with the optimized design of aerodynamic contour and structure, the blades have such
advantages: high utilization of wind energy which contributes to the annual energy output.

5. The generators adopting patented permanent magnet rotor alternator,with a special kind of stator design, efficiently decrease
resistance torque. Meanwhile, it makes the wind turbines match the generators quite well and increase its reliability.

6. Aluminum alloy body,anti-corrosion treatment,resistant to to acid and alkali, applicable in salty environment
Technical Data
Model Number
RX-1000H
Rated Watt
1000W
Max Watt
1200W
Rated Voltage
24V/48V
Start Up Wind Speed
2m/s
Rated Wind Speed
11m/s
Survival Wind Speed
45m/s
Net Weight
37.0 kg
Blade Quantity
3 PCS/5 PCS
Blade Length
3 blades type 1050mm, 5 blades type 900mm
Wheel Diameter
3 blades type 1856mm, 5 blades type 2350mm
Body Material
Aluminium die casting
Blades Material
Reinforced glass fiber
The Generator Type
Three-phase synchronous permanent magnet generator
Protection
Electronic-magnet &automatically adjust the windward Angle
Lubrication
Lubrication grease
Working Temperature
-40℃-80℃
Support Type
Guyed Tower
Detailed Images
Dimension & Drawing
Wind Power System
Our Factory
FAQ
1. What kind of region can be installed wind turbine?
Small wind turbines should be applied in the regions which wind resources is sufficient. The annual average wind speed should be
more than 3m/s, the effective wind speed 3-20m/s should be more than 3000h in accumulation per year. The density of 3-20m/s
effectively average wind power should be more than 100W/m2.

It should be noted that choosing the rated design speed wind turbine is in conformity with local design speed. It is significantly
in making use of wind resources and in economic aspect. Wind tunnel test proves that the fan power transformation of the impeller
in the direct ratio with wind speed, that is to say, the wind speed decide the output electrical power.

2. How to calculate the actual need power in my home to configure the appropriate power of wind turbines?
At present, battery stores the power from the wind turbine, then discharge to home appliances. So the power which discharged to
the load and be charged timely by wind turbine is the amount of the actual needs power.

Take an example: the rated output power from wind turbine generator is 100W per hour, the continuous workable hours by wind is 4
hours. The battery can be charged total capacity is 400WH. For only about 70% power from battery can be discharged to the load, so
the actual power which can be used from battery is 280WH.

If there are:

1) Bulb15W x 2 Pieces, working 4 hours one day, consumption 120WH

2) TV 35W x 1 set, working 3 hours one day, consumption 105WH

3) Radio 15W x 1 Piece, working 4 hours one day, consumption 60WH

Above total consumption is 285WH per day. If you only design to install 100W wind turbine generator, the consumption total power
will more than the power from wind turbine generator. In long period of time using power from 100W wind turbine generator, it will
make the battery serious loss of electricity and damaged, and it will cut down your battery service life.

It is assumed that wind turbine at rated wind power generation and energy consumption, but in fact, due to the variability of the
wind, intermittent, there are strong and weak wind different (wind speed) and wind blow in long time and short time
different(frequency). So you should cut down even cut off some electrical application working time when the wind condition is in
poor to protect your battery. If your budget is enough, it will be better to install a diesel generator set or install solar
panels at the same time.

3. How to select the correct battery capacity to get power from wind turbine generator?
Generally, the battery capacity should be equal or smaller than the power from wind turbine generator.

1) 100W wind turbine generator matches 120AH battery (60AH x 2 Pieces)

2) 200W wind turbine generator matches 120-180AH battery (60 OR 90AH x 2 Pieces)

3) 300W wind turbine generator matches 240AH battery (120AH x 2 Pieces)

4) 750W wind turbine generator matches 240AH battery (120AH x 2 Pieces)

5) 1000W wind turbine generator matches 360AH battery (60AH x 3 Pieces)
