Horizontal-axis wind turbine		Horizontal-axis wind turbine
Blade form	Propeller
Blade number	3 pieces
Balde material	Glass fibre reinforced plastic
Type of generator	Permanent-magnet 3 phase AC
Type of tower	Guy wire or free standing
Power	150W
Blade diameter	1.5m
Rated rotor speed	400r/min
Rated speed	8m/s
Rated power	150W
Max power	250W
Output voltage	12/24V
Start up wind speed	3m/s
Work speed	3-25m/s
Security wind speed	40m/s
High of tower	2-6m
Top quality except tower	35kg
Tower Steel tube model	φ60mm
Speed regulation	Leaning tail + electric brake

1. The wind wheel:Using three blades,laminar flow airfoil,high lift-drag and excellent performance.The blades use glass fiber reinforced plastic leaf fiber,with a large damping,good dynamic feature,and good toughness.Wind wheel and generator with flexible connections run smoothly without vibration or noise.

2. Generator:The overload strong bearing,long-lasting lubrication without maintenance.The rotor is made of permanent magnet (NdFeB),so it generates electricity when the rotating impeller drives generator rotor rotating.The wind is different from
ordinary electric motor,which is the ultra-low-speed motor,100 --- 400 per minute to switch that is able to meet the design power (depending on model),while such a low speed of the motor is unable to pronounce with ordinary electricity.

3. Switch controller:It is connected generators, batteries or network (if necessary),and electric-powered equipment,electrical installations.The system with different voltage sockets is user-friendly;rectifier that is issued by the three-phase AC generator changing into direct current. On grid and off grid style is optional .

4. Inverter:Wind generators are direct current through the battery output can only be used for the direct current electrical use,using AC appliances must be equipped with the DC into AC inverter,inverter can change from electrical power storing of battery to alternating current suitable for the standard of customers,and then provide utilization for electricity equipment.On grid an off grid is optional .

Features

1.Low speed permanent magnet generator. 2.Low starting torque,High generating efficiency. 3.Glassfibre high efficiency blades. 4.Neodymium magnets and bearing with high performance. 5.Yaw motor system(optional). 6.Designed for minimal maintenance and easy install. 7.Aerodynamic brake & manul brake.

8.WIFI APP function is optional.

Pure sine wave inverter

1.Pure sine wave output can drive any household appliances. 2.Use integrated circuit, less wire connection. 3.Adopting micro-processor technology, improving system integration. 4.Excellent protection includes over voltage shutdown, under voltage shutdown, over load protection, short circuit .protection, over thermal protection, etc. 5.Be able to work in wind power or wind&solar hybrid system. 6.With high efficiency transformer instead of high frequency e-circuit design. 7.Automatic regulate voltage. 8.LCD display operation status. 9.High running stability and reliability. 10.True sine wave form power output. 11.High efficient transformer isolation. 12.Buzzer alarm while over-loading/voltage, high-temperature.

13.Users can adjust the data upon the local real working situation.

Our company Qingdao Allrun New Energy co., ltd, is specialized in producing wind products and solar products, such as wind power system, solar panel , and other solar products. The company also owns an independent research on wind energy products of multiple power levels from 150W to 500KW, which have been widely used in independent off-grid wind power system, on-grid wind power system, wind-solar hybrid street light system, wind -solar hybrid home power system, wind-diesel hybrid system and etc.And welcome you to visit our website: www.qdallrun.cn to know more about our company and the products! We have about ten years in this area ,not only can products our own brand products, but also can design the system to the requirement from our clients. We have a 10 personed r&d team to do the development to meet the requirement from the market. Customers from Europe, America, Australia, Canada, New Zealand, South Africa and Asia. have already established reliable cooperation ship with us, and appreciated for our good service, fast delivery, honest communications, good quality and combative price. This is also the reason we can stand here so many years. And also hope you can cooperate with us in long term because of our advantage. Thanks!

Please feel free to contact me if there is any further question about it.

Q1:What size do you produce? A1:Allrun can produce from 150W to 300KW wind turbine, can supply parts or whole unit. Q2:Which style do you produce? A2:Allrun can produce both on grid and off grid, horizon style and vertical style. we can adjust to what you need. Q3:What the warranty? A3:Allrun can offer 20 years warranty. Q4:What about the delivery? A4:Allrun can delivery goods in 7days after payment , and also we can help you ship all over the world, you know we have our own shipping forwader.

5kw FD Wind Power Generator Unit Household Wind Turbine

Home use 220v horizontal wind turbine generator controller 10kw house wind generators

Wholesale 800w horizontal wind turbine fiberglass factory wind generator permanent magnet windmill for home use

Low rpm 100w 200w wind turbine generator wind power system small wind power alternator 12v 24v wind turbine generator renewable system for sale

Good price wind turbine generator 600w small wind generator multi blade generator wind power

Silent wind power system FD5 5KW 10kw wind turbine windmill generator for sale, aerogenerador éolien de generator generador de energy

Hot Sale Wind Power System Horizontal Permanent Magnetic Shaft FD25 120KW 150KW 100KW Generator Wind Turbine for Wind Farm

Small home wind turbine generator 1KW with factory price RX-1000H5

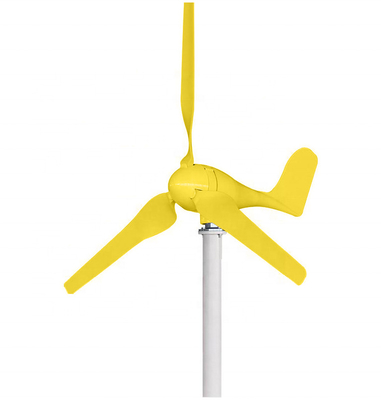

Hot sale small wind generator turbine 150w for home AR4.0-150W
